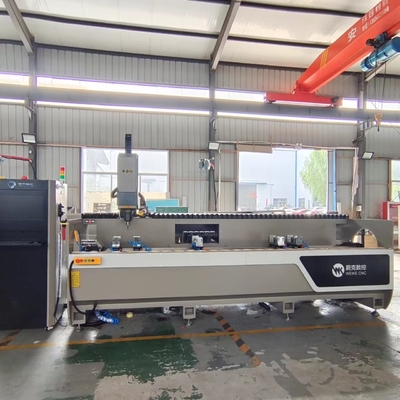

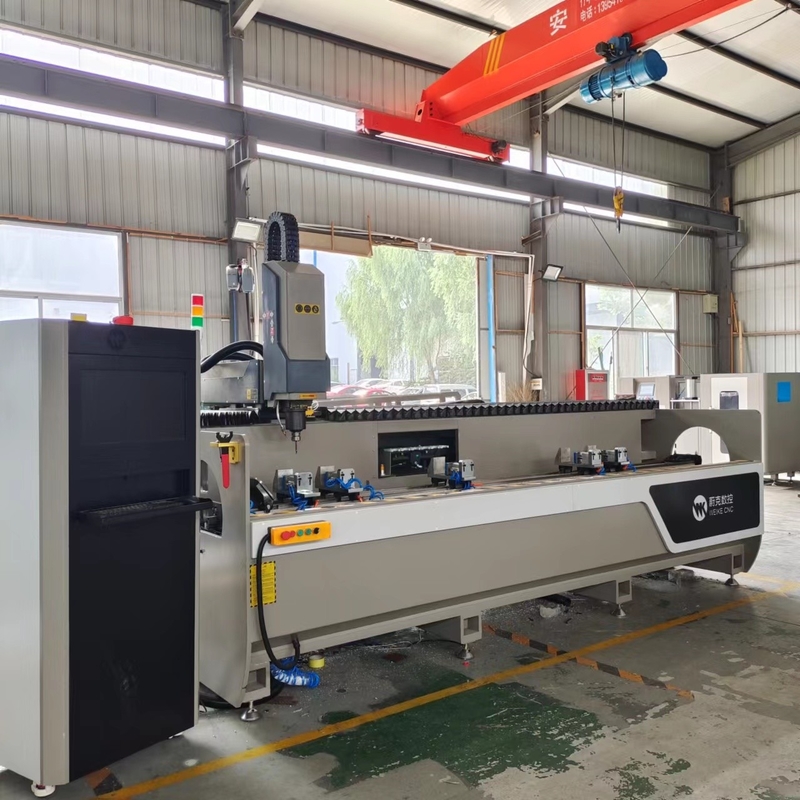

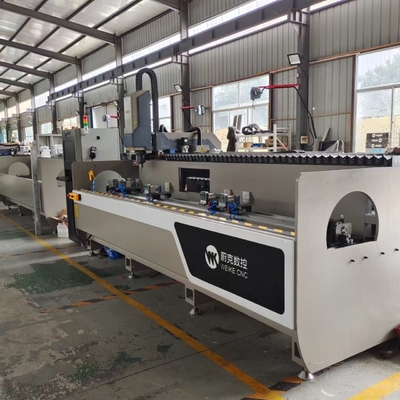

3200mm ATC Aluminum Profile CNC Machining Centres

Working center for aluminium profiles with 3 controlled, fully automatic management

of machining such as drilling, milling,tapping, grooving, notching,saw milling etc.

1. Main Feature:

● Equipped with skilled CAD-CAM programming package for industrial numerical management

system, it will be connected to domestic and foreign door and window curtain wall software and ERP,

CAD graphics import, powerful functions, straightforward operation and high efficiency.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time.

When processing deep through holes (shaped holes), deep hole processing can be realized by turning the

worktable to improve efficiency and good quality. .

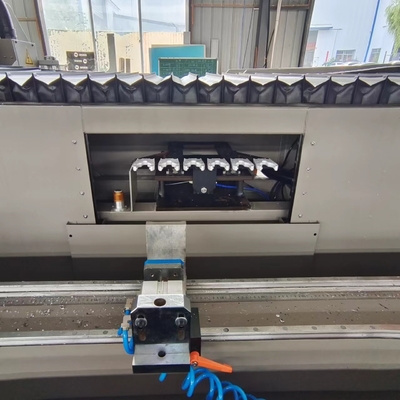

● The wellknown 6-bit/8-bit device mag can realise non-stop and uninterrupted machining.

● the automated mercury oil offer system is adopted, and therefore the cutter adopts a system-controlled

spray cooling device.

2. Machine Parameter:

Standard Features & Equipment:

• X-axis working length 3 m (118 in) Option
• Y-axis travel 300 mm (11.81 in)
• Spindle speed 24,000 rpm
• Spindle Motor 9KW
• Tool Holder ER32

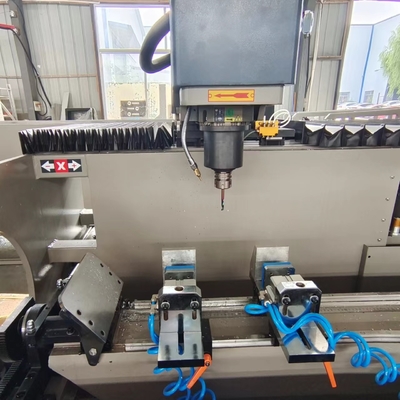

• Equipped with Air Clamps
• Automatic Lubrication System
• Mist Lubrication System
• Mitsubishi Servo Drives/Motors
• X, Y and Z axes are servo controlled​

Optional Equipment

Automatic Moving Fixture

The optional length on Xaxis can work with 2500mm 3200mm 5500mm 6000mm etc.

barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to work with aluminum machining center?

Q2: How to set up XYZ start position?

Q3: How to adjust aluminum machining center after got machine?

Q4: How does the aluminum machining center work?

Answers: Pls contact me for details, Will sent you detailed videos for aluminum cnc machining center.
