Product Details:
|
| Power Supply: | 380V/50HZ (Customized) | Power: | 12KW |
|---|---|---|---|
| Air Pressure: | 0.6~0.8MPa | Rotating Speed: | 24000/min |
| X Axis Speed: | 60M/min | Y/Z Axis Speed: | 40M/min |
| Overall Dimension: | 4000*2000*2600mm | Tool Magazine: | 6/8 Automatic Tool Changer |
| Highlight: | 3+1 Axis Aluminum Machining Center 40M/min,Aluminum Machining Center,12KW Aluminium Drilling Machine |
||

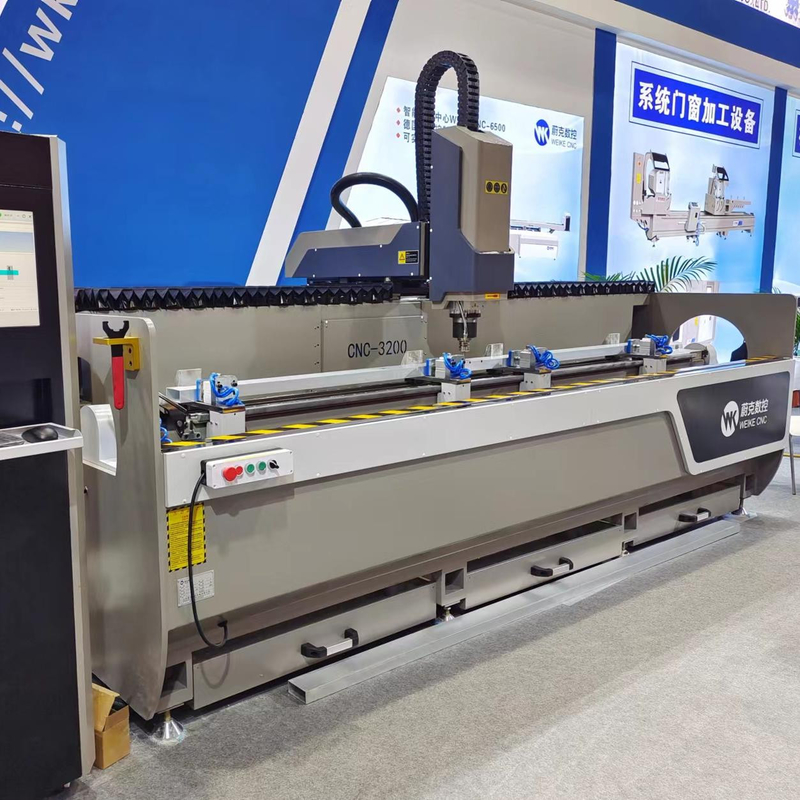

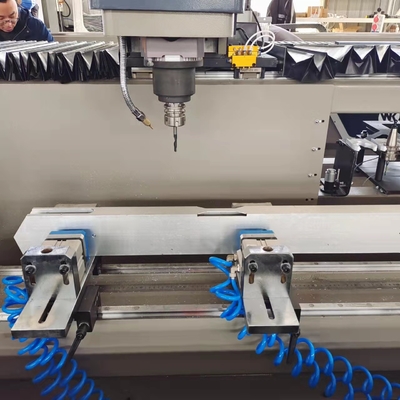

For processing round holes, slot holes, key holes, water slot, special-shaped holes etc on aluminium profiles, suitable for window door making area, Curtain wall making area, Industry aluminum Area.
● Preferred 6-bit/8-bit Mag device can recognize continuous and uninterrupted processing.
● The automatic mercury oil delivery device is adopted, and the tailor adopts a device-controlled spray cooling device.
● The main components of the device have a metal structure, all of which have undergone vibration aging and pressure relief treatment.
● It is suitable for processing ball hole, slot, keyhole, special hole of commercial aluminum alloy profile, door and window, curtain wall aluminum alloy profile and aluminum profile milling, chamfering, aircraft engraving and other processes.
● Equipped with professional CADCAM commercial numerical management equipment programming software, can be related to domestic and foreign door and window curtain wall software and ERP, CAD image import, effective functions, easy operation and high performance.
● The working table becomes 180°, 90°~0°~+90°, the profile can be processed in 3 facets at the same time.When machining deep through holes (shaped holes), deep hole machining can be found by rotating the worktable for improved performance and superior quality.
| Parameter | |
| Model: | WSZ-CNC |
| X-Axis stroke | 2500-7000mm |
| Y-Axis stroke: | 400 mm |
| Z-Axis stroke: | 300 mm |
| SPINDLE | |
| Spindle speed: | 24000 r.p.m |
| Spindle taper: | ISO-30 |
| TOOLS | ER-32 |
| Tool changer format: | Linear Type |
| Tool capacity: | 6 Sets |
| MOVING SPEED | |
| X-Axis moving speed: | 60 m/min |
| Y-Axis moving speed: | 20 m/min |
| Z-Axis moving speed: | 13.5 m/min |
| Feeding Speed: | 15000mm/min |
| POWER OF MOTOR | |
| Spindle driven motor: | 9.6 kw |
| X/Y/Z driven motor: | 1.0/1.0/0.75 kw |
| LUBRICATING SYSTEM | |
| Cooling system: | Spraying cooling system |
| Lubricating system: | Grease |
| PRECISION | |
| Position precisionof X Axis: | 0.05 mm |
| Position precisionof Y Axis: | 0.03 mm |
| Position precisionof Z Axis: | 0.02 mm |
| Repeating precision(X/Y/Z): | 0.03mm |
| SIZE OF MACHINE | |
| Air pressure: | 0.6~0.8MPa |
| Operation system: | Germany PA Automation System |
| Height: | 1700 mm |
| Area: | 4000-7500MM |
| Weight: | 2500-4500 kg |
Standard Equipment
Processing tools (6 pieces)
Cabinet providing protection in processing zone
Chips Collect Box
Automatic Lubrication
Optional Equipment
Automatic Moving Fixture
Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc
|
Power Supply |
Power |
Air Pressure |
Rotating Speed | X Axis Journey | Y Axis Journey | Z Axis Journey | X Axis Speed | Y/Z Axis Speed | Weight |
| 380V/220V/415V/440V | 12KW | 0.6~0.8MPa | 24000r/m |
3200mm(Option) |
400mm | 300mm | 60M/min | 40M/min | 2370KG |
