Product Details:
|
| Saw Blade Specification: | 500 ,550,600 | Diamond Saw Blade: | 2 |
|---|---|---|---|
| Label Printer: | Yes | Cutting Angle: | 90°、 45° |
| Highlight: | 6KW Double Head Aluminium Cutting Machine,Double Head Aluminium Cutting Machine 50hz,50hz Double Head Automatic Chop Saw |
||
Double mitre saws for PVC and aluminium profile bars, distinguished by different cutting lengths depending on the model; also, the length of the mitre saws can be customised in order to meet each of the client’s requirements.
1. Feature
1. The machine adopts numerical control technology and can complete automatic positioning cutting of different sizes of profiles.
2. CNC transmission adopts high standard rack and pinion, high transmission accuracy, accurate positioning, stable work.
3. Automatic head rotation, bidirectional positioning, clamping, single head can work independently. Automatic opening and closing protective cover.
4. Lubrication and cooling device that moves with the saw blade, effectively improving the cutting quality and the service life of the saw blade.

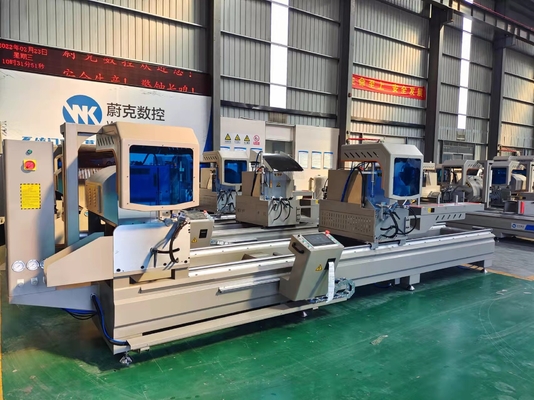

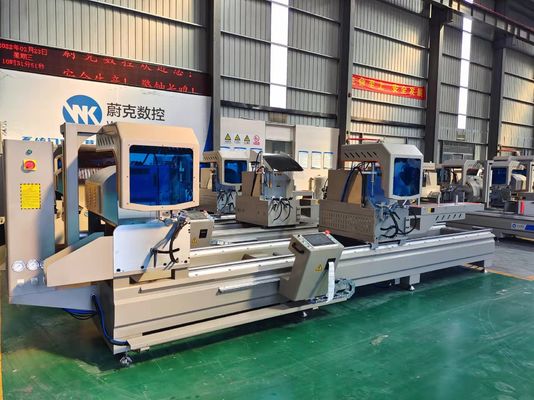

WJM-CNC-500*4200
500mm Saw Blade CNC Double Head Saw
| Product Parameter | ||
| Input power | 4.4kw+0.75KW (550,600 saw blade use 6KW+0.75KW) | |
| Power supply | 380V/50Hz (Can make according your voltage) | |
| Air pressure | 0.6~0.8MPa | |
| Motor rotary speed | 2800r/min | |
| Saw blade specification | φ500,Φ550,φ600 | |
| Cutting angle | 90°,45° | |
| Cutting length | 290~6000mm | |
| Cutting width*height |
φ500
|
150*180mm (45 degree) |
| 150*240mm (90 degree) | ||
|
Φ550 |
175*205mm (45 degree) | |
| 175*265mm (90 degree) | ||

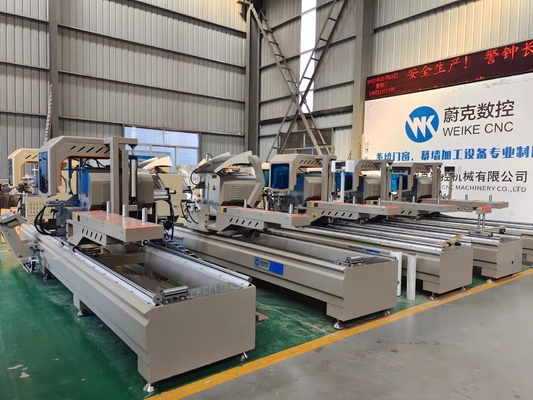

2.Other products
3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
