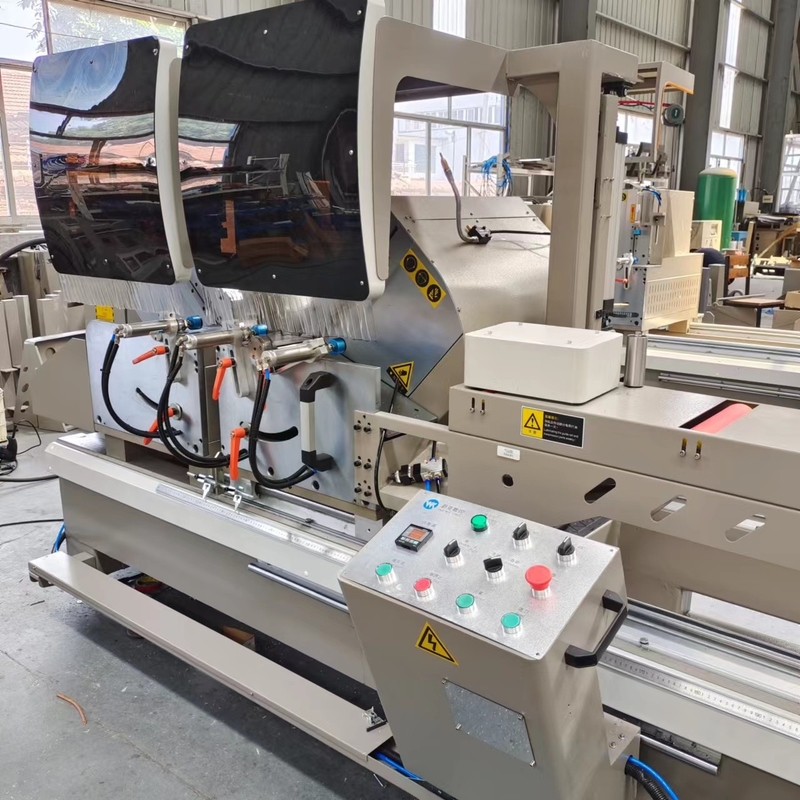

Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum

Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum
Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum

Large Image :  Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WJMS-500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 8500 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30 Sets / Month
Contact Now

Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum

Description
Main Moter Power: 2.2KW*2 Saw Blade Diameter: 500mm
Cutting Angle: 45 Degree And 90 Degree English Manual: Provide
Video Training: Provide Remote Function: Have
Highlight:

2.2KW Double Head Sawing Machine 500mm

,

Double Head Sawing Machine 500mm

,

500mm Aluminum Double Miter Saw

                          500mm/550mm/600mm CNC Double Head Cutting Saw
 Front blade sawing machine, Used for Aluminum, PVC and Curtain-wall profile accurate and efficient CNC cutting.Double-head semi-automatic cutting saw is used for cutting of aluminum and PVC/UPVC profile. The cutting saw could cut 45°and 90° edge, and common type and digital display type available. And different cutting scales could be customized as per requirements.
Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum 0

1. Feature



● Used for reducing aluminum alloy doors and windows, curtain wall profiles.

● It adopts numerical manipulate tool to appropriately show the duration of the reduce profile.

● The excessive-precision spindle makes the noticed blade rotate stably.

● The gas-liquid damping cylinder realizes uniform feed pace law and solid movement.

● The computerized lifting protecting cowl makes paintings secure and convenient.

● The feed device adopts imported linear manual pair, which has excessive precision and lengthy life.



2. Technical Parameter

Input power Power supply Air pressure Motor rotary speed Saw blade specification Cutting angle Cutting length Cutting width*height Overall dimension Weight about
4.4kw 380V/50Hz (Can make according your voltage) 0.6~0.8MPa 2800r/min φ500 90°45° 360~4200mm 150*180mm (45 degree):150*240mm (90 degree) 5800 x 1500 x 1700mm 1650kg



3. Machine Details And Advantage

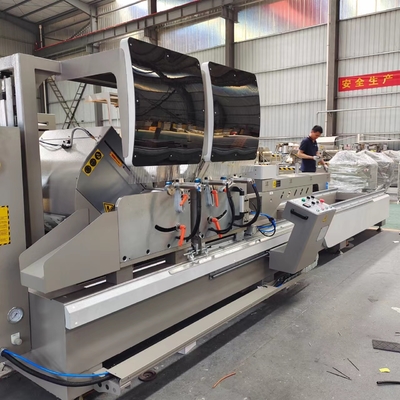

 Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum 1

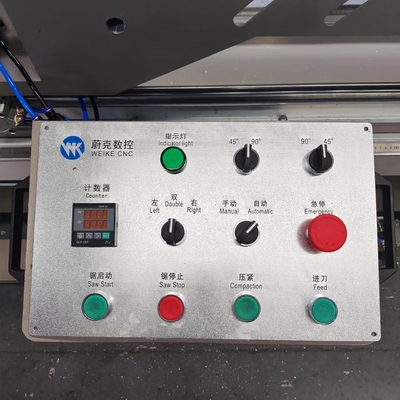

Easy Control Panel for change cutting angle with 45 and 90 degree





Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum 2


1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean


 Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum 3


Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high



Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum 4


Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed



Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum 5
Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.



Digital Display Double Head Sawing Machine 500mm Double Miter Saw For Aluminum 6



Right head and left head have own lubrication, so oil can be more average
