Doors And Windows Machine For aluminum profile end miller

Large Image : Doors And Windows Machine For aluminum profile end miller

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WDX3-CNC-350

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	5500 USD
Packaging Details:	Plywood Box
Delivery Time:	7 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	30 Sets / Month

Contact Now

Doors And Windows Machine For aluminum profile end miller

Description

Power Supply:	Customized	Power:	3KW
Air Pressure:	0.6~0.8MPa	Saw Blade:	Diameter 350mm
Max Tenoning:	100mm	Worktable Range:	330*180mm
Highlight:	Doors And Windows Machine , aluminum profile end miller

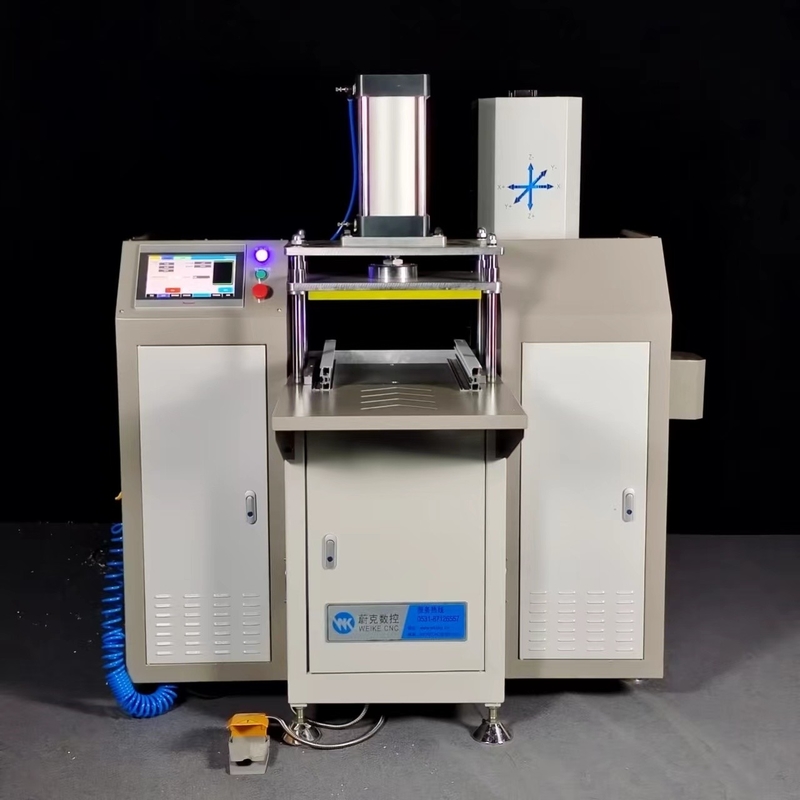

3 Axes CNC End Milling Machine

This machine is designed to milling the end of aluminum profiles, Programming according different profile. Then machine will adjust milling bits automatic to achieve milling grooves.

Doors And Windows Machine For aluminum profile end miller 0

1. Main Feature

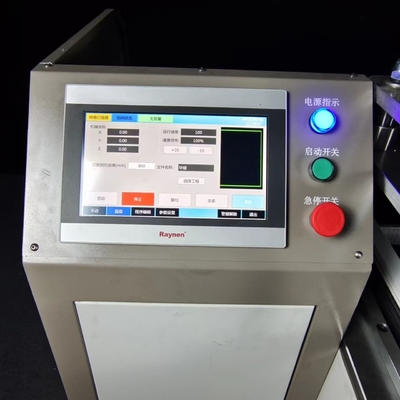

● The system uses CNC numerical management system, the numerical control servo adjusts the tool to maneuver up and down, left and right, and also the feed rate may be adjusted to quickly retract the tool. The process space is large, the operation is convenient, and the production potency is high.

● It is suitable for shaping and processing the end faces and step faces of various profiles, to adjust the
setting of profiles with different cross sections, and to fix the profiles.

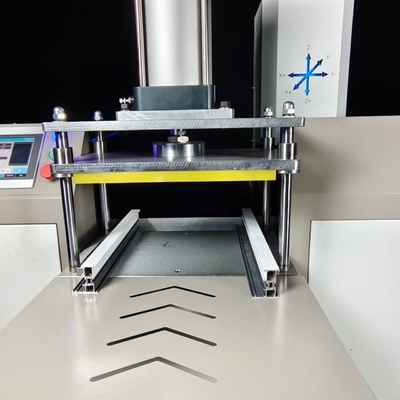

2. CNC End Milling Machine Details

3. Main Technique Parameter:

Power supply	380V 50Hz	Working air pressure	0.6-0.8Mpa
Input power	6Kw	Suitable material	aluminum profile
Type	milling machine	Size(long×width×high)	183014001650mm
Main motor rotation speed	2800r/min	Weight	700Kg

Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Contact Us For More Information:

Tag:

Contact Person: Emily Wang

Tel: +86 155 5416 2658
