3 Axis Aluminum End Milling Machine Automatic Cnc Milling

Large Image : 3 Axis Aluminum End Milling Machine Automatic Cnc Milling

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WDX3-CNC-350

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	5000 USD
Packaging Details:	Plywood Box
Delivery Time:	7 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	30 Sets / Month

Contact Now

3 Axis Aluminum End Milling Machine Automatic Cnc Milling

Description

Saw Blade:	Diameter 350mm	Max Tenoning:	100mm
Worktable Range:	330*180mm	Milling Bits:	Vertail And Horizontal
Function:	Milling And Cutting	English Manual:	Provid
Online Training:	Provid	Video Training:	Provid
Highlight:	0.6Mpa Aluminum End Milling Machine , Aluminum End Milling Machine 50Hz , 50Hz Automatic Cnc Milling Machine

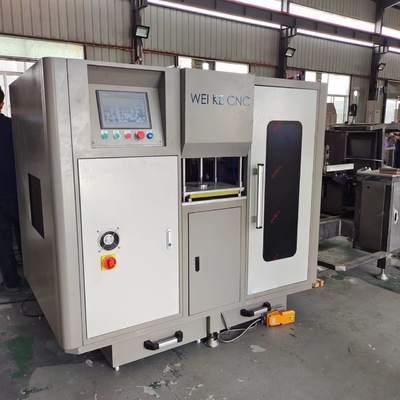

3 Axes CNC End Milling Machine

This machine is designed to milling the end of aluminum profiles, Programming according different profile. Then machine will adjust milling bits automatic to achieve milling grooves.

3 Axis Aluminum End Milling Machine Automatic Cnc Milling 0

1. Main Feature

● The system uses CNC numerical management system, the numerical control servo adjusts the tool to maneuver up and down, left and right, and also the feed rate may be adjusted to quickly retract the tool. The process space is large, the operation is convenient, and the production potency is high.

● It is suitable for shaping and processing the end faces and step faces of various profiles, to adjust the
setting of profiles with different cross sections, and to fix the profiles.

2. CNC End Milling Machine Details

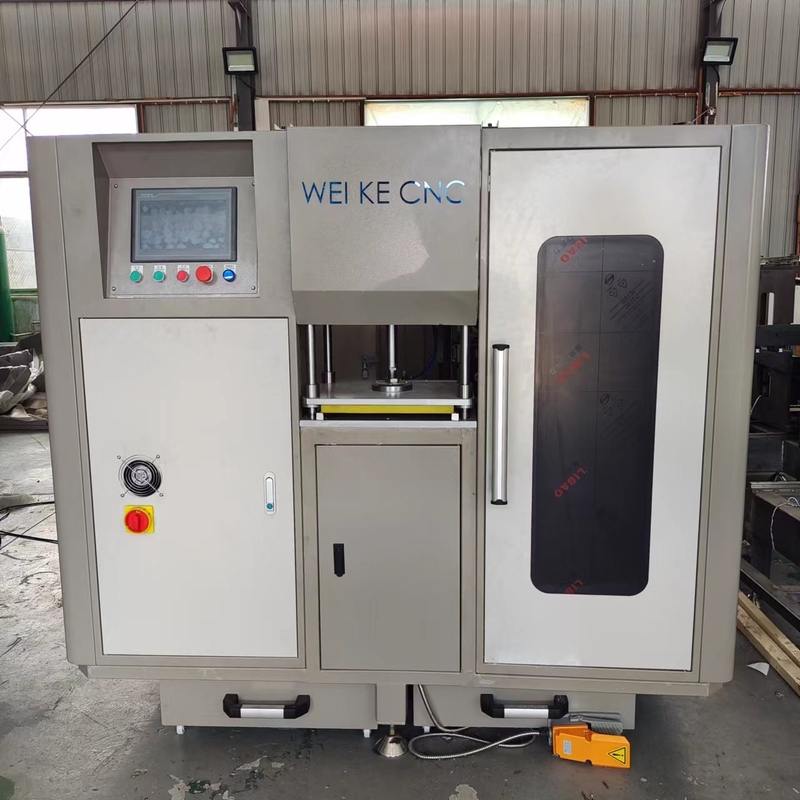

Control System

3 Axis Aluminum End Milling Machine Automatic Cnc Milling 1

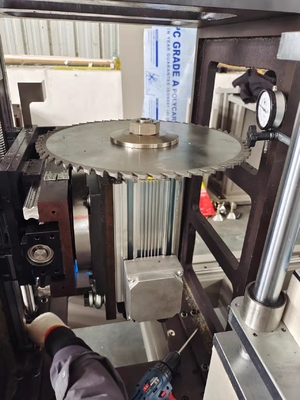

Milling Saw Blade in horizontal position

3 Axis Aluminum End Milling Machine Automatic Cnc Milling 2

Milling Saw Blade in Horizontal Position

3 Axis Aluminum End Milling Machine Automatic Cnc Milling 3

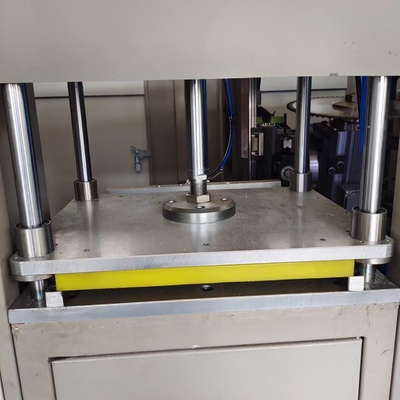

Worktabel can put many pcs aluminum profile together

3 Axis Aluminum End Milling Machine Automatic Cnc Milling 4

3. Main Technique Parameter:

Power supply	380V 50Hz	Working air pressure	0.6-0.8Mpa
Input power	6Kw	Suitable material	aluminum profile
Type	milling machine	Size(long×width×high)	183014001650mm
Main motor rotation speed	2800r/min	Weight	700Kg

Provide Service:

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Provide: English Manaul -----Video Training-----Online Training
