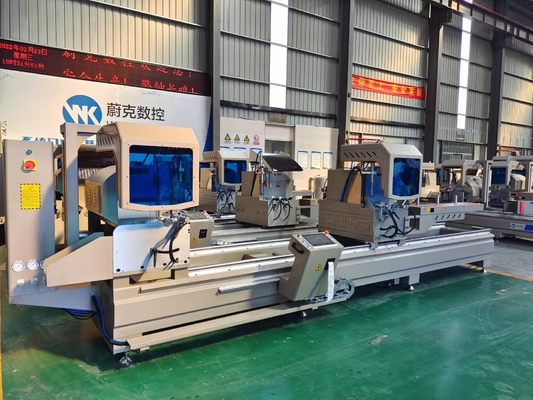

Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

Windows Doors Machine for cutting aluminum profile in 45 and 90 degree
Windows Doors Machine for cutting aluminum profile in 45 and 90 degree Windows Doors Machine for cutting aluminum profile in 45 and 90 degree Windows Doors Machine for cutting aluminum profile in 45 and 90 degree Windows Doors Machine for cutting aluminum profile in 45 and 90 degree Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

Large Image :  Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WJM-CNC-600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 15500 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30 Sets / Month
Contact Now

Windows Doors Machine for cutting aluminum profile in 45 and 90 degree

Description
Main Moter Power: 2.2KW Saw Blade Diameter: 600mm
Cutting Angle: 45 Degree And 90 Degree English Manual: Provide
Video Training: Provide Remote Function: Have
Color: Customized
Highlight:

45 Degree Windows Doors Machine

,

Aluminum Profile Windows Doors Machine

,

90 Degree Windows Doors Machine

                          500mm/550mm/600mm CNC Double Head Cutting Saw

                                Front blade sawing machine

Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 0
1. Main Feature
● Used for cutting aluminum alloy doors and windows, curtain wall profiles.
● It adopts numerical control device to accurately display the length of the cut profile.
● The high-precision spindle makes the saw blade rotate stably.
● The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
● The automatic lifting protective cover makes work safe and convenient.
● The feed system adopts imported linear guide pair, which has high precision and long life.


2. Technical Parameter


● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)

● Power supply: 380V/50Hz (Can make according your voltage)

● Air pressure: 0.6~0.8MPa

● Motor rotary speed: 2800r/min

● Saw blade specification: φ500 / φ600

● Cutting angle: 90°45°

● Cutting length: 290~6000mm

● Overall dimension: 5800 x 1500 x 1700mm

● Weight about: 1650kg

Option:


1 Saw Blade: 500/550/600mm
2 Printer
3 Connect with windows design software
4 Main Spindle and Motor Option
5 Cutting length Option
6 Have different machine frame

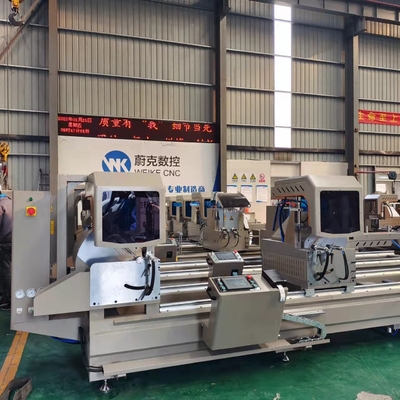

3. Update Saw During Production:
Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 1



3. Machine Details And Advantage

 Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 2

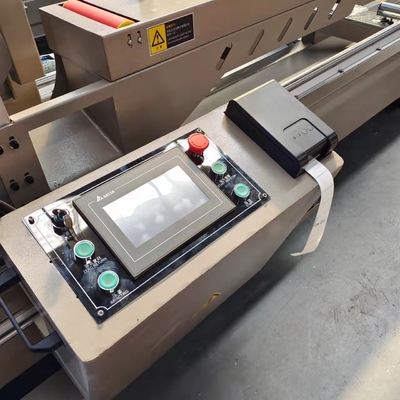

CNC Control, cutting length, cutting angle control are all automatic.

Have printing function, so can print clients info and profile info.





Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 1



1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean


 Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 4

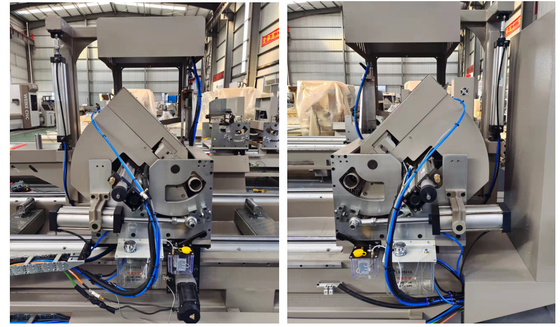

Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high



Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 5


Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed



Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 6

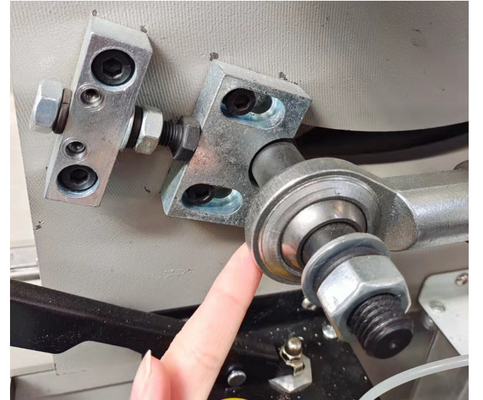

Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.



Windows Doors Machine for cutting aluminum profile in 45 and 90 degree 7



Right head and left head have own lubrication, so oil can be more average
