Aluminum Profile CNC Machining Center XYZB 4 Axis Wroking CAD-CAM Programming Software With HANS PA Controller

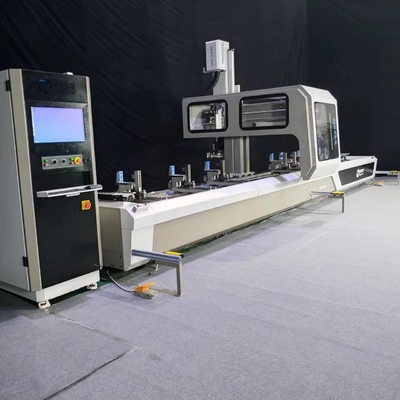

             Aluminum Profile 4 Axis CNC Machining Center

                        Drilling Milling Tapping Cutting End Milling on Alu Profile

                       Automatic Tool Changer with 12 sets tools          With RTCP Function

                     Spindle turn to -90 to +90 degree any angle         Double Working Area

1. Main Feature

●The system is geared up with an business numerical manipulate machine, committed CAD-CAM modifying software program for three-d modeling display, computerized device setting, that may optimize the journey path. It can whole non-stop computerized milling of various specs and sizes of profiles, with effective functions. CAD drawings may be imported into the machine for handy and simple, and may be equal to home and overseas doors, windows, and curtain wall machine software program.It is appropriate for the processing of complicated elements including numerous aluminum, copper, PVC, business profiles, constructing curtain walls, and solar rooms.The system can comprehend the clamping of uncooked substances at one time, and consistent with the processing needs, it is able to whole the cutting, milling stop face tenon, milling key hollow slot, walking trough, air strain stability hollow, set up hollow and different multi-technique processing to fulfill customers' necessities for doors, windows, curtain walls, and solar rooms. , Personalized customization of business aluminum profiles.For loads of aluminum, copper, PVC, business profiles and different complicated elements processing.

● The single-arm frame structure with moving beam and moving column is adopted, which makes the operation more stable and improves the processing rigidity of the machine tool.High-quality bus servo motors, ball screws, linear guides and bearings are used to ensure that the equipment has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.Fixture automatic optimization function, automatic avoidance or early warning processing when the clamping position interferes with the processing position.The left and proper partitioned layout, with positioning plates at the left and proper, can whole interactive feeding with out preventing the gadget and enhance processing efficiency.This gadget adopts high-pace electric powered spindle imported from Italy, that can whole the processing of any attitude on the opposite 3 facets besides the bottom. Vertical disc kind device magazine (12 positions).

●The centralized computerized feed lubrication approach with quantitative timing guarantees the steadiness of the gadget device accuracy and automated micro atomization cooling.The pneumatic clamping workbench is followed to boom the loading and unloading pace.The fuselage adopts grating protection safety feature to make certain secure operation.

2.  Samples Holes After Working:

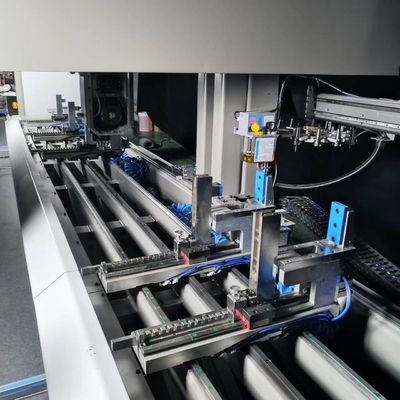

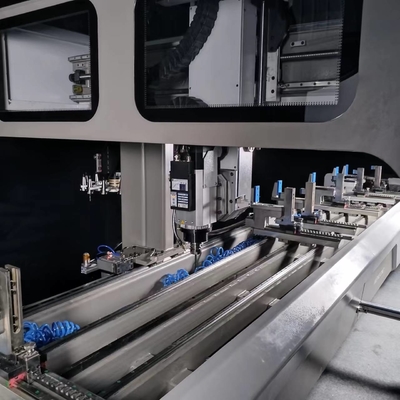

3.  Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Contact Us For More Information:

4. Questions:

4.1 Why called 4 Axis CNC Machining Center?

4.2 How this 4 Axis CNC Machining Center working?

4.3 Why have to match RTCP function?

Answers: For all those answers, pls contact us, We will sent you machine videos. Thanks
