Curtain wall production machine for 4 axes cNC Controlled Automatic Machining Centre

             Aluminum Profile 4 Axis CNC Machining Center

Drilling Milling Tapping Cutting End Milling on Alu Profile, Automatic Tool Changer with 12 sets tools

Spindle turn to -90 to +90 degree any angle, With RTCP Function, Powerful to working with alu profile

Double Working Area, Automatic Calibrate, Protect Sensor to protect workers safe.

1. Main Feature

● The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.For a variety of aluminum, copper, PVC, industrial profiles and other complex parts processing.

●It is suitable for machining complex parts such as aluminium, copper, PVC, industrial profiles, facade structures and solariums. The single-arm frame structure with moving beam and moving column is adopted, which makes the operation more stable and improves the processing rigidity of the machine tool.  High-quality bus servo motors, ball screws, linear guides and bearings are used to ensure that the equipment has high machining precision, high stability and reliability. The feed movement is pre-stretched to ensure the stability of machining precision.

● Device automatic optimization function, automatic avoidance or early warning processing when the clamping position collides with the machining position.Left and right divided design, with two positioning plates left and right, can perform interactive loading without stopping the machine, and improve processing efficiency. This machine uses high-speed electric spindle imported from Italy, which can finish the processing of all angles on the other three sides except the bottom. Vertical disc tool magazine (12 positions).  Centralized lubrication method with automatic supply and quantitative synchronization ensures stability of machine tool precision and automatic cooling by micro-atomization.

● The pneumatic clamp workbench is used to increase the speed of loading and unloading.The fuselage adopts the network security protection function to ensure safe operation.

2.  Samples Holes After Working:

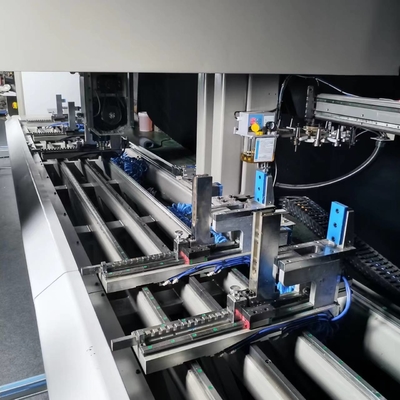

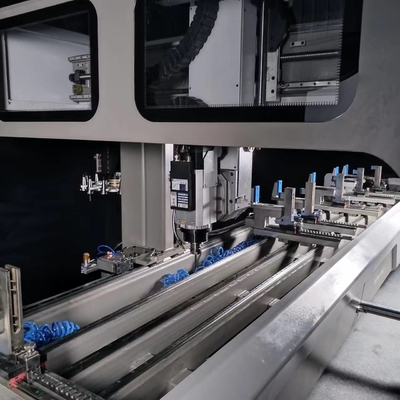

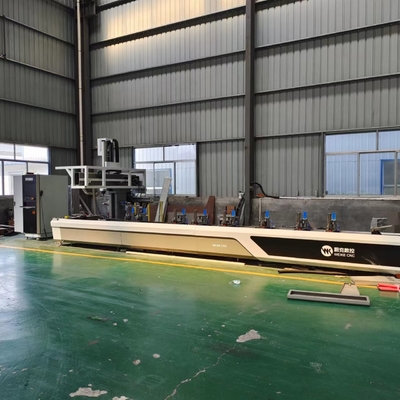

3.  Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Contact Us For More Information:

4. Other Machine for choose
