Aluminum CNC Machining Center How CNC Drilling Milling Machine Work On Alloy Material

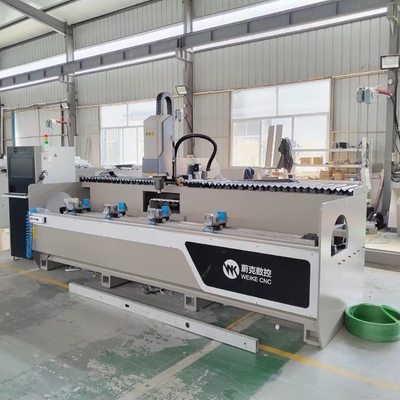

•                                  3200mm ATC Aluminum Profile CNC Machining Center

Processing center for aluminum profiles with 3 controlled and fully automatic management of processing such as drilling, milling, threading, grooving, notching, sawing, etc

1. Main Feature For Aluminium Drilling Milling Machines

● The standard 6-bit/8-bit tool magazine can realize continuous and uninterrupted machining.

● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The main parts of the machine tool adopt steel structure, all of which have undergone vibration aging and stress relief treatment.

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrial aluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

Standard Features & Equipment:

​

• X, Y, and Z-axes are servo controlled

​

• Mist Lubrication System

​

• Mitsubishi Servo Drives/Motors

• X-axis working lengths 118 Inches (3m) Option

​

• Y-axis Travel 11.81 Inches (300mm)

• Tool Holder ER32

​

• Equipped with Air Clamps

​

• Spindle Speed 24,000 RPM

​

• Automatic Waylube Lubrication System

​

• Spindle Motor 9KW​

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to work with aluminum machining center?

Q2: How to set up XYZ start position?

Q3: How to adjust aluminum machining center after got machine?

Q4: How does the aluminum machining center work?

Answers: Pls contact me for details, Will sent you detailed videos for aluminum cnc machining center.
