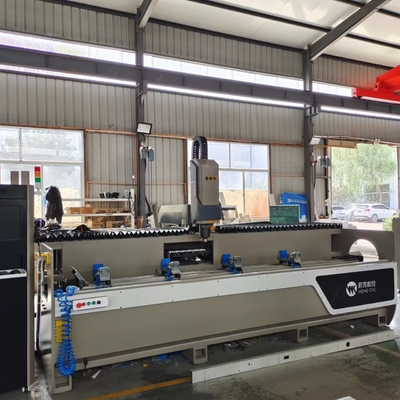

3 Axis CNC Aluminium Profile Drilling Milling Machine For Window And Door Area

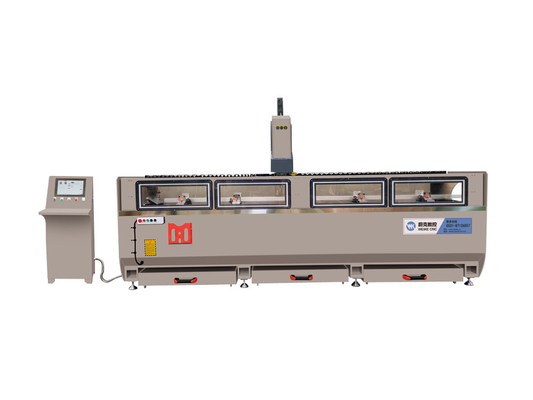

                        3200mm ATC Aluminum Profile CNC Machining Center

For processing round holes, slot holes, key holes, water slot, special-shaped holes etc.

1. Main Feature

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrial aluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

● The main shaft adopts an Italian air-cooled electric main shaft with a power of 9KW and a rotation speed of 24000 revolutions/min. It has high precision, good safety and high reliability.

● Equipped with knowledgeable CAD-CAM programming computer code program for commercial numerical manage gadget, it is able to be relating to home and overseas door and window curtain wall computer code program and ERP, CAD photos import, effective functions, simple operation and excessive performance.

● The machine-driven mercury oil deliver device is adopted, and therefore the cutter adopts a gadget-managed spray cooling device.

● The main parts of the machine tool adopt steel structure, all of which have undergone vibration aging and stress relief treatment.

2.  Samples Holes After Working:

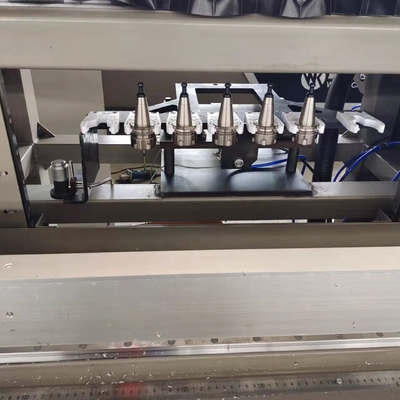

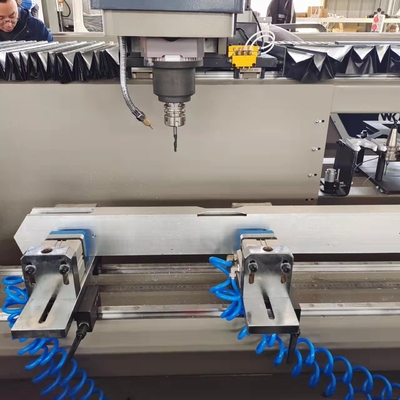

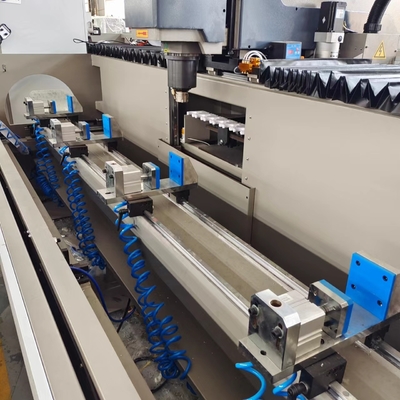

4. Machine Details
