CNC Machining Centers for Aluminum Extrusions with automatic tool changer

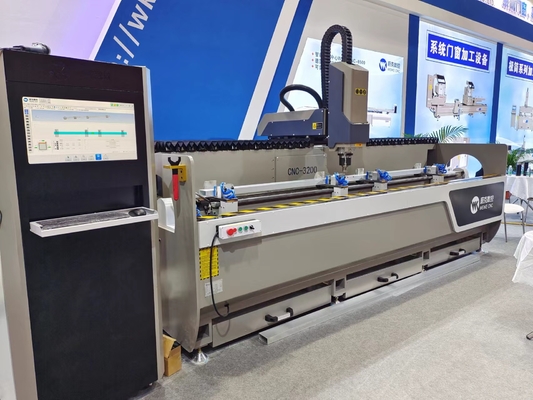

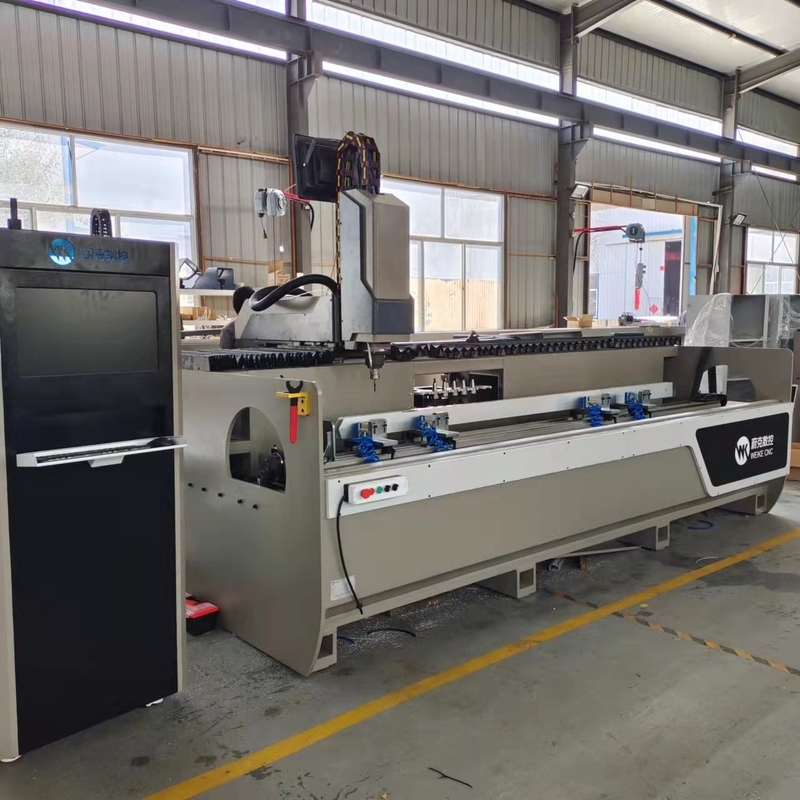

                                 3200mm ATC Aluminum Profile CNC Machining Center

For processing round holes, slot holes, key holes, water slot, special-shaped holes etc.

1. Main Feature

● It is suitable for processing ball hole, slot, keyhole, special hole of commercial aluminum alloy profile, door and window, curtain wall aluminum alloy profile and aluminum profile milling, chamfering, aircraft engraving and other processes.
● The mainshaft uses an Italian air-cooled electric mainshaft with an output of 9 kW and a speed of 24,000 rpm. It has excessive precision, superior protection, and excessive reliability.
● Equipped with professional commercial numerical management equipment CADCAM programming software, can be related to domestic and foreign window and door curtain wall software and ERP, CAD image import, effective functions, easy operation and high performance.
● The working table rotates 180°, 90°~0°~+90°, the profile can be processed in 3 facets at the same time.When machining deep through holes (shaped holes), deep hole machining can be found by rotating the worktable for improved performance and superior quality. .

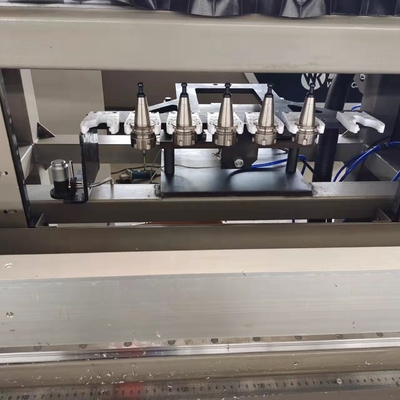

● The preferred 6-bit/8-bit Mag device can recognize continuous and uninterrupted processing.
● Automatic mercury oil supply device is adopted, and Schneider adopts device-controlled spray cooling device.
● The main components of the device have a metal structure, all of which have undergone vibration aging and pressure relief treatment.

2.  Samples Holes After Working:
