Product Details:
|
| X Axis Maximum Torque: | 2000N/m×3=6000N/m | Maximum Diameter Of Roller Mold: | 300mm |
|---|---|---|---|
| Processing Profile Range: | Height 150× Width 150mm | Y Axis Cylinder Thrust: | 20 Ton |
| Highlight: | 300mm Aluminium Bending Machine,CNC Aluminium Bending Machine |
||

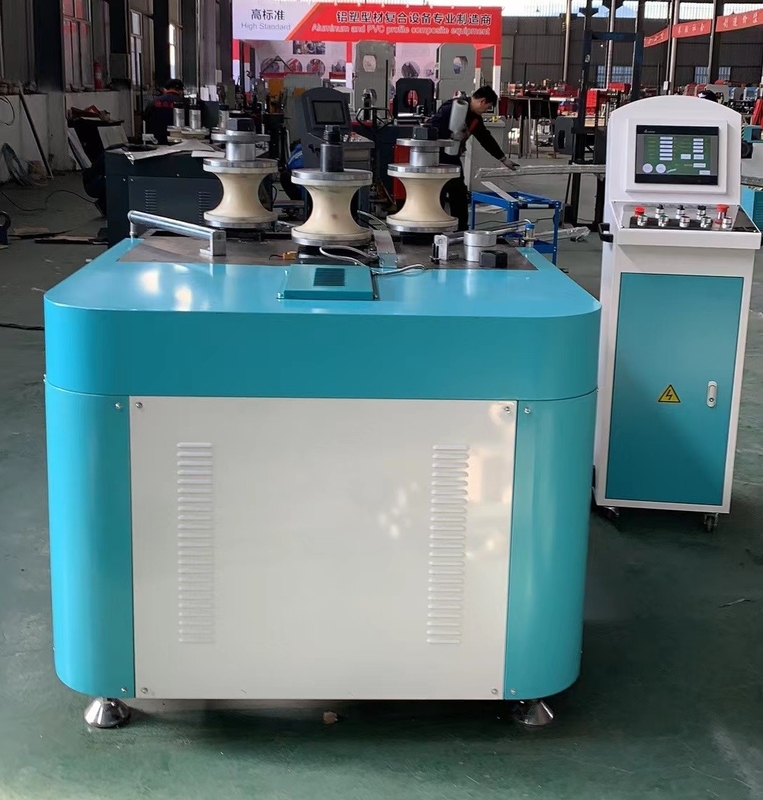

CNC Aluminium Profile Shape Bending Machine From Aluminum Alloy Processing Machine Manufacturer
1. Equipment Features
1. The machine adopts automatic CNC system and special arc bending software, which is easy and convenient to operate. Positional accuracy: +/-0.02mm.
2. The max hydraulic pressure can be reached 20T/25T/40T/60T that brings the easily bending of all kinds of aluminum profile and window sash (rectangular steel tube)
3. All products not only can be formed in once with high efficiency and zero wear rate, but also can be formed in many times.
4. Space of driving wheel is set according to user needs. It can be adjusted in different position, in other words, the position of two wheels can be adjusted to different space.
5. It not only can be bended into one radius arc (ordinary type C arc), but also two radius arcs (type U arc), and three radius arc (bread arc and ellipse).
6. The machine can store a certain amount of procedure (depend on memory space), input information as detail as possible for easy recognition during next use.
7. It can bend all kinds of aluminum profile (ordinary aluminum profile, thermal break aluminum, aluminum-plastic-aluminum, aluminum plastic), rectangular steel tube, etc.
2. Parameter
| Product Parameter | |
| Motor power | 5.2Kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| X axis maximum torque | 2000N/m×3=6000N/m |
| Y axis feed stroke | 0~220mm |
| Maximum diameter of roller mold | 300mm |
| Processing profile range | Height 150× Width 150mm |
| Roller diameter | 60/mm (Can be design according need) |
| Min processing radius | 100mm( inside ) one-time bending (related to the actual size of the material) |
| Y axis cylinder thrust | 20 ton |
| Y axis cylinder positioning accuracy | ±0.1mm |
| Overall dimension |
Operate table: 500*510*1500mm |
| Weight about | 1000kg |

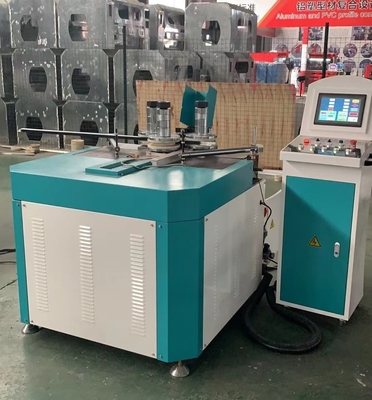

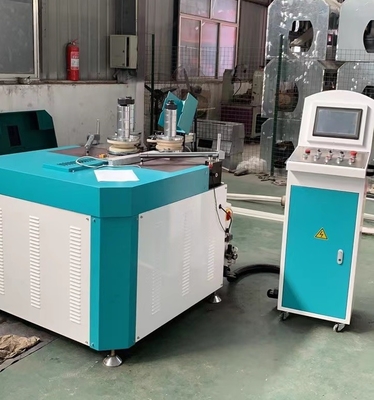

3. Mechanical details and after working samples
3. Other products
4. Our services
1. Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5. Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. What are the functions?
2. What are the advantages ?
3. Are there training instructions?
4. How long is the warranty?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
