Product Details:
|
| Operational Mode: | Automatic | Product Handled: | Or Aluminum Profiles |
|---|---|---|---|
| Maximum Frame Size: | Height 1800mm × Width 3000mm | Corner Cylinder Movement Stroke: | 0～50mm |
| Highlight: | 1.8m Corner Crimping Machine,Corner Crimping Machine 50Hz,50Hz Aluminium Window Crimper |
||

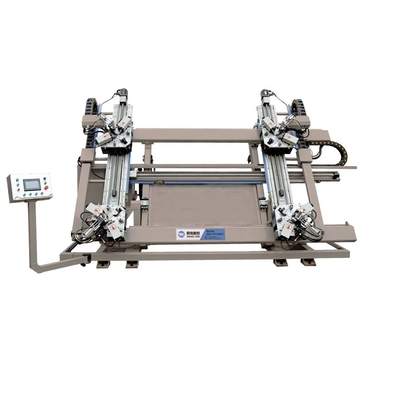

CNC 4 Head Corner crimping machine is used for the assembly of aluminum doors and windows. It can complete the corner riveting connection of four corners at one time, with high production efficiency.
1. Features
1. Used for corner assembling processes of aluminum profiles.
2. Steel plate with high pressure resistance
3. Automatic positioning with servo system

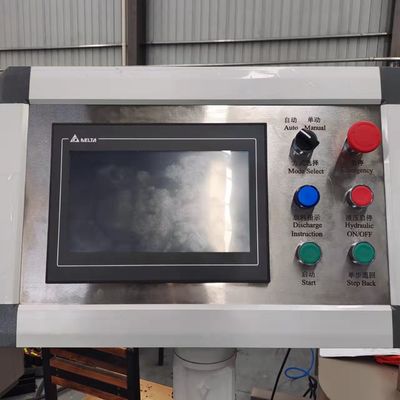

4. Touchscreen
5. Adjustable clamping system for high profiles
6. Adjustment of crimping blades based on profile
7. Hydraulic operating system
NC4H-100*1800*3000
CNC 4 Head Corner crimping machine
| Product Parameter | |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Rated power | 7.5KW |
| Rated hydraulic pressure | 15MPa |
| Capability of oil box | 40L |
| Corner cylinder movement stroke | 0～50mm |
| Maximum frame size | Height 1800mm × Width 3000mm |
| Minimum frame size | Height 480mm × Width 480mm |
| Suitable for profile width | 100mm |
2.Other products

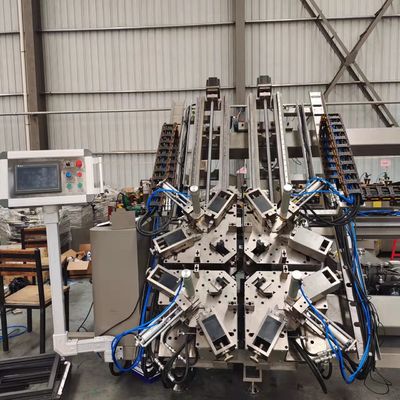

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
