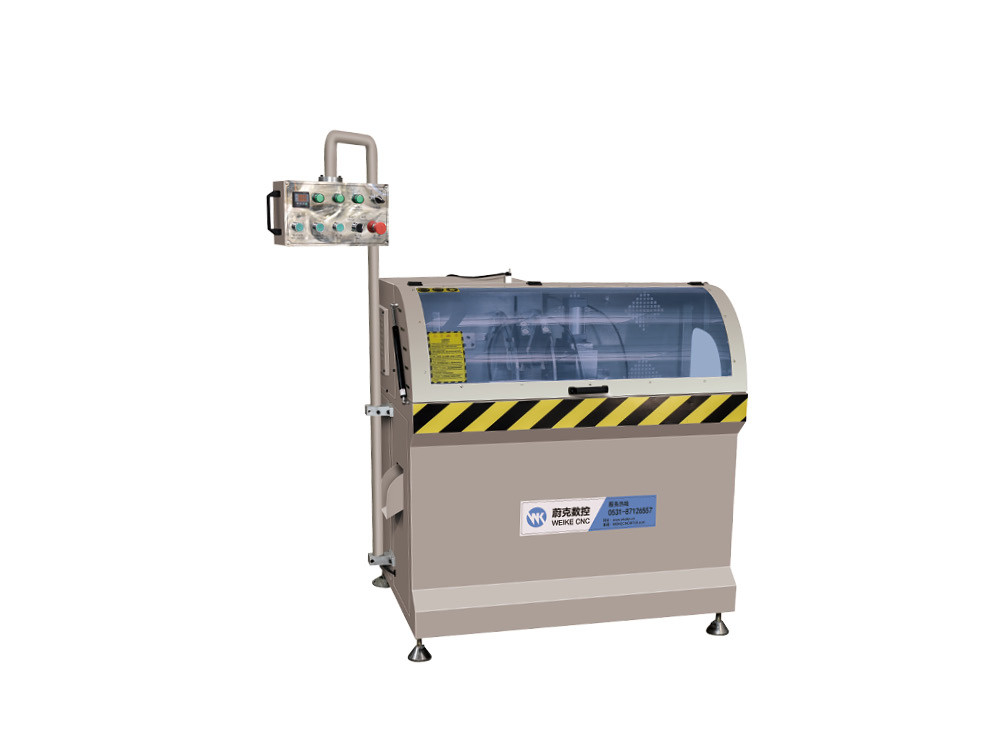

Corner Automatic Cutting Saw Aluminium Corner Connector Machine

Corner Automatic Cutting Saw Aluminium Corner Connector Machine
Corner Automatic Cutting Saw Aluminium Corner Connector Machine Corner Automatic Cutting Saw Aluminium Corner Connector Machine Corner Automatic Cutting Saw Aluminium Corner Connector Machine

Large Image :  Corner Automatic Cutting Saw Aluminium Corner Connector Machine

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: LJJZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1500 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20 Sets / Month
Contact Now

Corner Automatic Cutting Saw Aluminium Corner Connector Machine

Description
Power Supply: 380V/50Hz Power: 2.2KW
Operation Air Pressure: 0.6~0.8MPa Rotary Speed: 3850r/min
Warranty: 3 Years Condition: New
Type: Cutting Aluminum In 90 Degree Usage: Aluminium Windows Corner Connect
Highlight:

2.2KW Corner Automatic Cutting Saw

,

Corner Automatic Cutting Saw 50hz

,

50hz Aluminium Corner Connector Machine



              LJJZ-450 Automatic Corner Cutting Saw For Aluminum Doors And Windows


Used in cutting the aluminum windows and doors'angle specially, Has the reliable angle code length positioning
device, it is equipped with three pressure setting, is equipped with the guidance in angle code place,thus
guaranteed cuts the angle code does not bring any useless acute angle,even if cuts the 3mm long angle code notto bring the acute angle.

Corner Automatic Cutting Saw Aluminium Corner Connector Machine 0

Power supply



Power



Operation air pressure

 Rotary speed



Blade specification



Sawing range

  Dlmenslcn
380V/50HZ 2.2KW
0.6~0.8MPa
 3850r/min
Φ450×Φ30×4.4mm
125×140mm
1400×1400×1800mm(  4000mm)



Company Introduction

Corner Automatic Cutting Saw Aluminium Corner Connector Machine 1Corner Automatic Cutting Saw Aluminium Corner Connector Machine 2

Corner Automatic Cutting Saw Aluminium Corner Connector Machine 3Corner Automatic Cutting Saw Aluminium Corner Connector Machine 4


Machine Delivery

Corner Automatic Cutting Saw Aluminium Corner Connector Machine 5







Tag:

3850r/min Automatic Corner Cutting Saw,

3850r/Min corner Aluminium Window Cutting Machine,

Automatic Corner Cutting Saw 0.8MPa
