Aluminium Door And Window Making Machine Automatic Cutting

Aluminium Door And Window Making Machine Automatic Cutting
Aluminium Door And Window Making Machine Automatic Cutting Aluminium Door And Window Making Machine Automatic Cutting Aluminium Door And Window Making Machine Automatic Cutting Aluminium Door And Window Making Machine Automatic Cutting

Large Image :  Aluminium Door And Window Making Machine Automatic Cutting

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WJQ-CNC-6000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 51500 USD
Packaging Details: Suitable for shipping
Delivery Time: 40 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 3 Sets / Month
Contact Now

Aluminium Door And Window Making Machine Automatic Cutting

Description
Power Supply: 380V/50HZ (Customized) 220V 400V 415V Total Power: 14.6KW
Air Pressure: 0.5~0.8MPa Rotary Speed: 3000r/min
Saw Blade: Diameter 550mm Cutting Angle: 45 And 90 Degree
Air Consumption: 200L/min Cutting Length: 200~6500mm
Cutting Area: 175*150mm Overall Dimension: 13500*3000*2600mm
Highlight:

415V Aluminium Door And Window Making Machine

,

50HZ Aluminium Door And Window Making Machine Automatic

,

415V Automatic Aluminium Cutting Machine

                  Automatic Aluminum Profile Cutting Center

            Automatic Production Line for Windows and Doors Making
                            Real-time Processing Data Monitoring
                Cutting 45 and 90 as well as 45 with 90 combine Degree
                            Support doors windows design software
                                         Have Remote Function

Aluminium Door And Window Making Machine Automatic Cutting 0
1. Main Feature
● This machine is suitable for high-efficiency sawing processing of aluminum door and window profiles, and can simultaneously perform 45°, 90°, and 45° and 90° combined angle sawing processing of profiles. The innovation
of the sawing unit structure saves processing time and reduces processing errors and wear.
● Equipped with German industrial CNC control system, remote assistance, and support for docking with domestic
and foreign door, window and curtain wall system software.
● The stable and high-precision bed, after aging treatment, the structure is reasonable, and the operation is convenient.
● The feeding and discharging system is fully servo controlled, fast and accurate, equipped with a standard clamping system, and the intelligent manipulator automatically rotates 0-360° to clamp the profile at any angle, which can meet the clamping and feeding of various profiles.
● High-quality feed servo motors, ball screws, linear guides and bearings are used to ensure that the equipment
has high processing accuracy, high stability, and reliability.
● The high-precision spindle motor is directly connected to the saw blade, cutting smoothly, and the processing accuracy is high. The saw blade is controlled by a vertical servo motor. The stroke is controllable, efficient and stable, and it is not affected by the external environment. The saw blade is separated from the cutting surface of the profile when returning, effectively avoiding the return sweep of the material, the cutting is stable, and the processing accuracy is high.
● The innovation of the cutting unit structure, continuous feeding without pulling action, saves time and reduces errors
and wear.
● The entire cutting process requires only one person to operate, which is efficient, simple and fast.
● The whole machine's gas-electric protection device and mechanical protection device ensure safe production.
● Equipped with a bar code printer to print material identification in real time to realize process information identification, which is convenient for material management and connection with enterprise ERP management software.
● Equipped with a waste output device to prevent site pollution caused by waste accumulation and improve the
production environment.


2. Parameter:

Power Supply220V, 380V, 415V, 440V...
Working pressure0.6-0.8MPA
Total power14.6KW
Spindle Speed175*1150mm
Max Cutting Section300-6500mm
Cutting Length45° 90°
Dimension13500×3000×2600mm



3. Aluminum Profile Cutting Machine Details

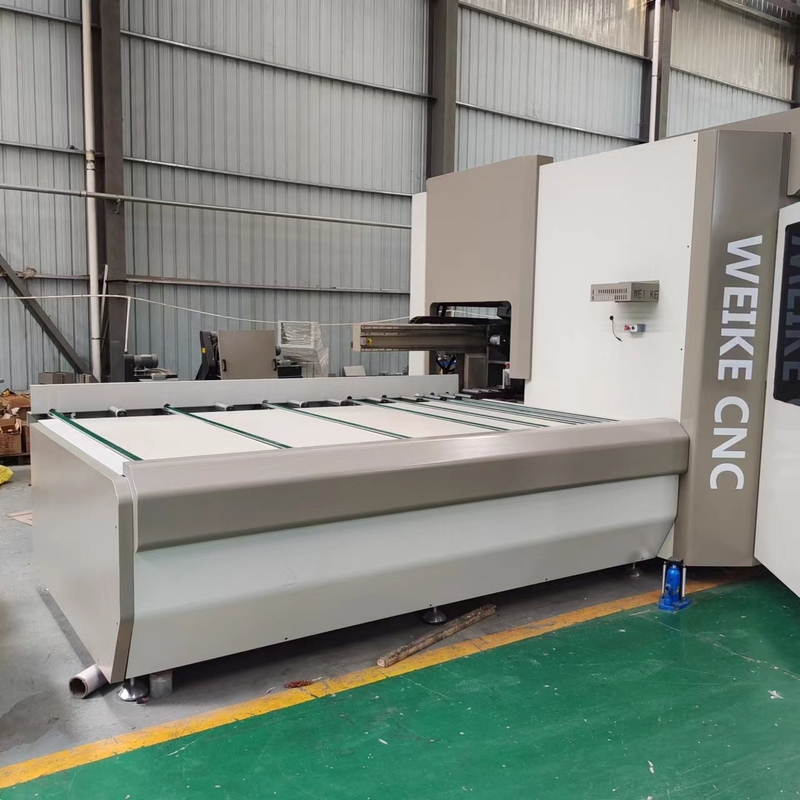

Aluminium Door And Window Making Machine Automatic Cutting 1

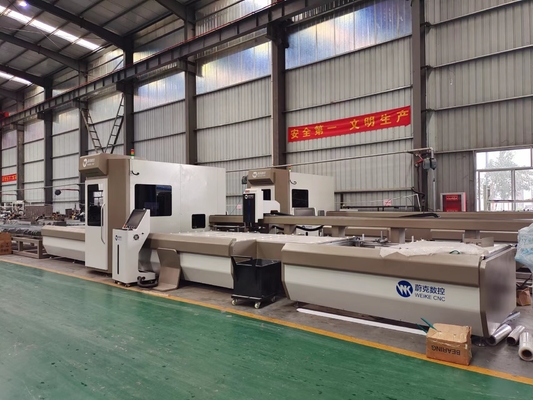

Aluminium Door And Window Making Machine Automatic Cutting 2

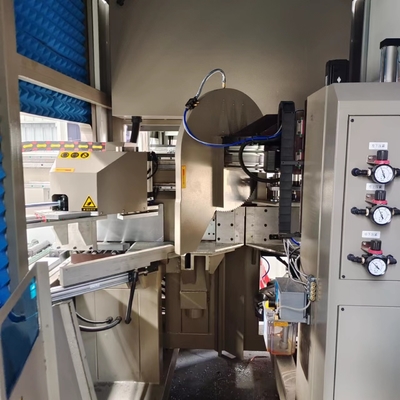

Aluminium Door And Window Making Machine Automatic Cutting 3

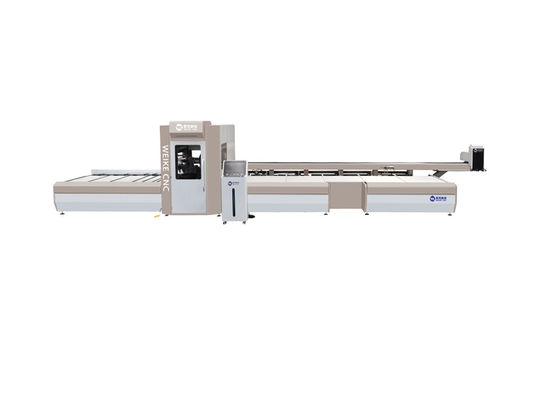

Aluminium Door And Window Making Machine Automatic Cutting 4

4.Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
